ELECTRE

ELECTRE flight-case validation of multi-temperature thermo-chemical models in a hypersonic re-entry flow.

Original report plot

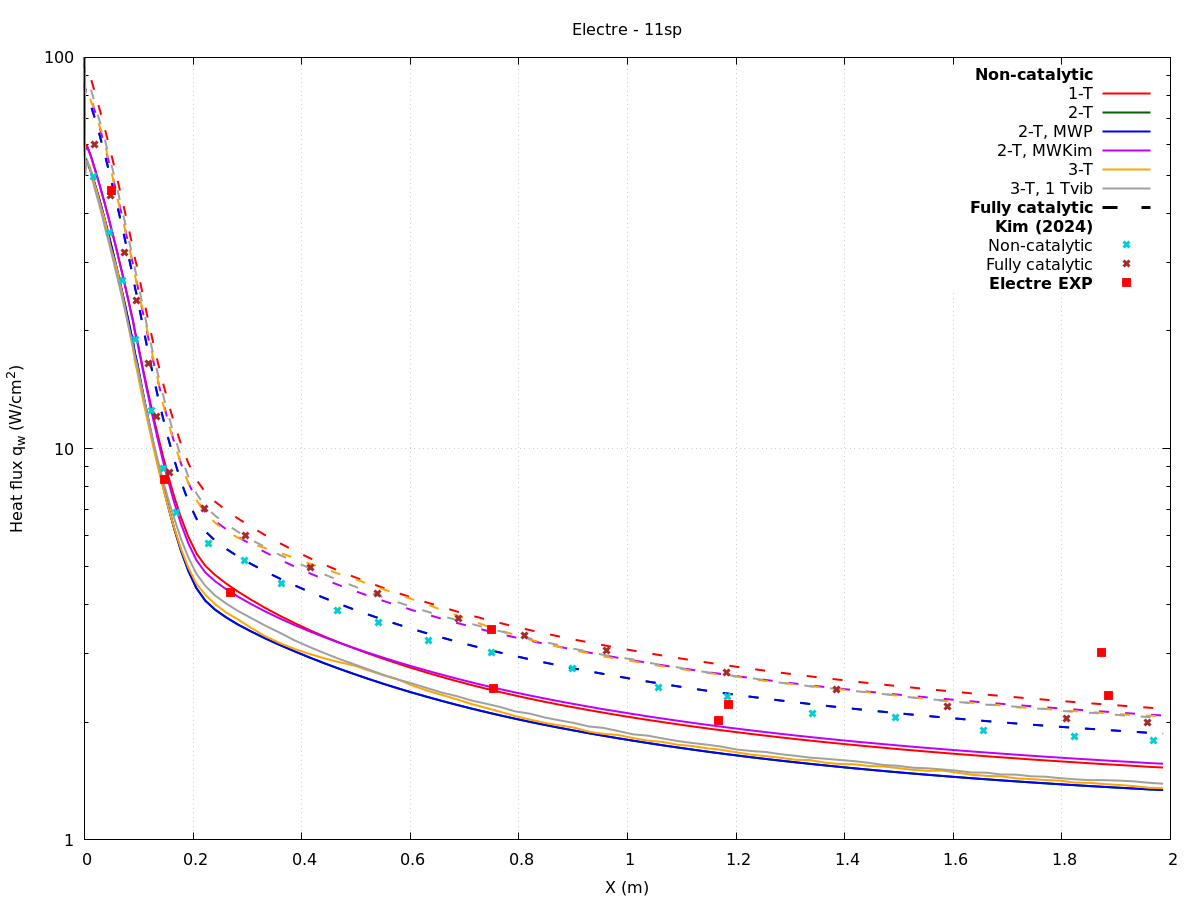

Wall heat-flux comparison

Original ELECTRE heat-flux curves against the experiment and reference points.

Original ELECTRE report plot of wall heat flux against capsule position for multiple models and experiment points

Original plot from the ELECTRE report, Figure 7.

Physics figures

Supporting flowfield, geometry and experiment images from the report.

Source PDF
ELECTRE capsule geometry used for the NSMB simulation

Simulation geometry

Axisymmetric ELECTRE capsule profile used to define the re-entry flow domain.

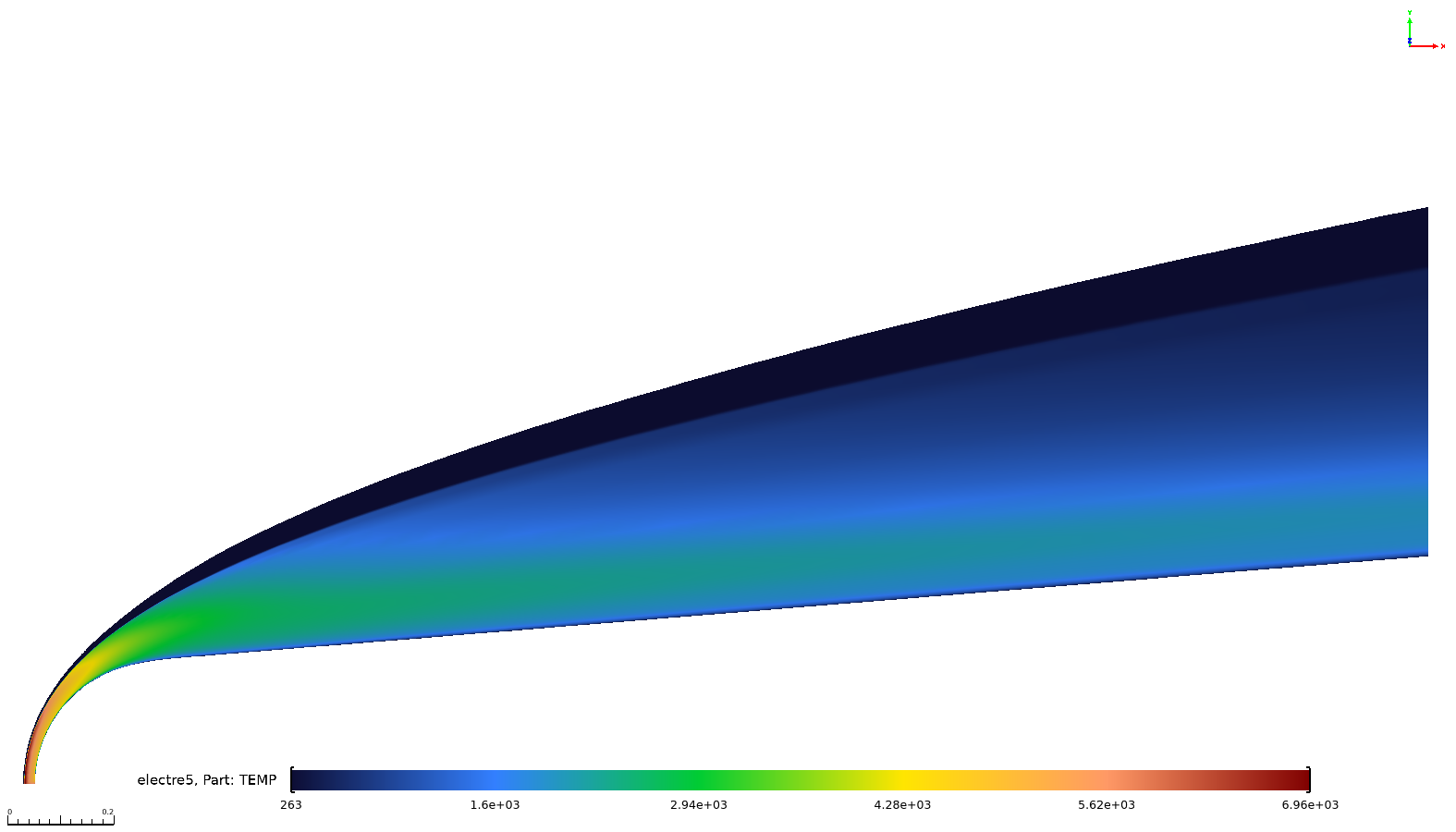

ELECTRE temperature contour along the capsule skin

Temperature field

Computed temperature contour through the shock layer and along the capsule surface.

Conclusion

Why the results are comparable

Every model captures the steep heat-flux fall away from the stagnation point. The non-catalytic cases sit below the ELECTRE measurements, while catalytic and multi-temperature treatments move the magnitude toward the experiment; the 2-T and 3-T curves are nearly indistinguishable over most of the skin.
